Trailer Ride Height Problems: Leveling Valve or Lift Axle?
A trailer leveling valve holds ride height: it fills the air springs when load pushes the frame down and vents them as it rises. A lift axle valve decides whether a liftable axle carries load. Check the leveling valve and its linkage when height is wrong, and the lift axle valve circuit when an axle stays up or down.
Last updated: November 19, 2026
Key takeaways
- Set ride height on level ground with over 100 psi in the system; Navistar's procedure finishes by adding air, never by venting.
- ZF-WABCO's mechanical lift axle valve lowers the axle at a factory-set 4 ± 0.2 bar of air spring pressure, protecting the other axles' load limits.
- A lift axle that drops when the ignition goes off is normal with a spring-returned valve.
- US rules require an air-suspended vehicle to sit level and leak no more than 3 psi in 5 minutes under 49 CFR 393.207.
A leveling valve, also called a height control valve, is a lever-operated air valve on the frame, tied to the axle by a linkage rod. A lift axle valve is the switching valve that either feeds an axle's air springs, so it carries weight, or empties them and fills its lift bellows, so it hangs clear. Trailers with ECAS (electronically controlled air suspension) replace the lever valve with a height sensor, a control unit and solenoid valves.
How do the two valves hold a trailer at the right height?
ZF-WABCO's trailer equipment catalog says its 464 006 levelling valve admits air as loading compresses the springs and vents it as they extend, reading height from the angle of a lever tied to the axle. ZF-WABCO wants a vertical linkage, no more than 45° of lever travel, a lever 150-295 mm long and a lever-to-rod ratio near 1.2; a shorter lever uses more air.
Height-limited versions add a second valve that cuts air to the raise-lower control at a set lever angle, 30° ± 2° on the 464 006 100 0 as delivered, so the body cannot be lifted past its permitted height. Those figures belong to that valve family; take any other valve's settings from its own data sheet.
The lift axle valve reacts to air spring pressure instead, lowering the axle at a set switching point.
Which valve is behind your ride height symptom?
| Symptom | Check first | The valve is at fault when |
|---|---|---|
| Trailer sits too high or too low | Bent rod or bracket, slipped lever clamp, linkage length | Height stays wrong after re-pinning neutral and refitting the linkage |
| Height sinks while parked | Air springs, fittings and lines, soaped at normal pressure | Its exhaust keeps blowing with the lever in neutral |
| ECAS trailer leans or its lamp flashes | Bent height sensor linkage, blocked supply line, air spring leaks | A solenoid valve will not fill or empty its spring |
| Lift axle will not rise | Load above the switching point, supply pressure, power and switch | Supply is present but the lift bellows get no air |
| Lift axle stays up when loaded | Switching point set too high, pressure sensor or switch | It ignores its set pressure on a test gauge |
| Lift axle drops with ignition off | Valve type: spring-returned valves do this by design | Only if it is built to hold the axle up |
How do you check and set leveling valve ride height?
These steps combine Navistar's ride height procedure for rear air suspensions on International trucks, filed with NHTSA, with ZF-WABCO's fitting notes for the 464 006.
- Prepare. Park on flat, even ground and chock the wheels instead of setting the parking brake, as Navistar's CV truck check and ZF-WABCO's ECAS calibration both specify. Build the system above 100 psi (6.9 bar).
- Cycle the valve. Dump the springs to their lowest level and let the valve refill them; Navistar repeats this before and after each adjustment for a more accurate reading.
- Measure. At the wheel end nearest the valve, mark the axle center front and rear, measure each mark to the bottom of the frame rail and average them. Navistar's specifications run from 9.0 to 13.0 in, each ±1/8 in (about 3 mm); take a trailer's figure from its builder's or suspension maker's current data.
- Pin the valve. ZF-WABCO's 464 006 takes a 3 mm locator pin through its shaft at neutral. Fit the linkage vertically with the trailer at normal height and the lever as long as space allows.
- Adjust. Loosen the lever clamp bolt. If the trailer sits high, swing the lever down to vent below target, then raise it by adding air; if low, lift the lever until height is right. Retighten, and never bend rods or brackets to change height.
- Re-check. Remove the pin, cycle the suspension, measure again and soap the exhaust port with the lever in neutral.
How does a lift axle control valve decide when to lift or lower?
Port numbers make a lift axle control valve diagram easy to read. On ZF-WABCO's 463 084 000 0, port 1 is supply, 21 and 23 go to the main air springs, 22 and 24 to the lift axle's air springs, 20 to the lift bellows and 3 to exhaust; test connection 42 sets the switching pressure. Lowered, the lift axle's springs take suspension air and the lift bellows vent; raised, the reverse.
On that mechanical valve the driver lifts the axle with a push button. When loading brings main spring pressure to the switching point, 4 ± 0.2 bar as delivered, the button springs out and the axle comes down, keeping the axles on the ground within their permitted load. ZF-WABCO checks that point at port 42 by raising pressure from 0 bar, which takes the valve's hysteresis out of the reading. The fully automatic 463 084 020 0 lowers at 4.5 ± 0.2 bar and lifts at 2.5 ± 0.2 bar.
If an axle will not lift, ZF-WABCO's ECAS manual names a load too heavy to allow it, which is not a fault, as well as a faulty remote control, pressure switch, sensor or parameter.
What changes when the trailer has ECAS?
ZF-WABCO's ECAS for Trailers manual describes a control unit that checks height every second while the trailer stands or moves slowly and usually every 60 seconds at speed, and never lowers a raised lift axle automatically on the move.
If a correction brings no height change within 30 seconds, the default, the unit logs a plausibility error and stops leveling; the manual traces this to a solenoid valve that will not fill or empty, a blocked line, low supply pressure or a leaking air spring. A bent sensor linkage causes a wrong level or a lean the unit cannot detect, and any new sensor or control unit must be calibrated. Settings vary by system and software, so use the manual for the unit on your trailer.
What do the inspection rules say about air suspension?
In the US, 49 CFR 393.207 sets three conditions: the regulator valve may not let air into the suspension until the brake system holds at least 55 psi, the vehicle must sit level without tilting left or right, and leakage may not exceed 3 psi in 5 minutes with the gauge at normal operating pressure. The same section bars controls that can dump one axle of a two-axle air suspension trailer unless they sit on the trailer or the combination cannot exceed 10 mph (16 km/h) with the air out; it does not bar lift axles on multi-axle units.
Appendix A to 49 CFR Part 396 lists a deflated air suspension, and any frame or body contact with a tire, as defects at the periodic inspection.
Repair kit or new valve: which one fits?
ZF-WABCO lists no maintenance for either valve beyond the legal inspections, so a failed one needs a repair kit or a replacement. Its test instruction for the 463 084 000 0 clears a repaired valve for the vehicle only after a bench test, switching at 4 ± 0.1 bar on a 7-8 bar supply.

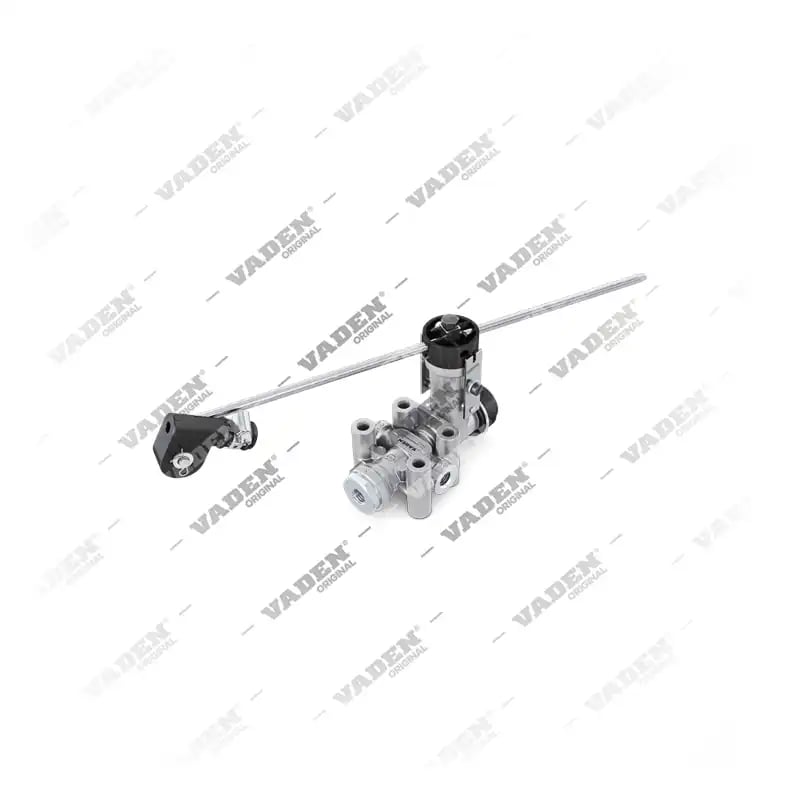

The VADEN 303.07.0001 levelling valve replaces ZF-WABCO 464 006 002 0, the version without height limitation, plus Volvo 8030222, DAF 1325337 and MAN 81.43610-6116, with M12x1.5 ports, a 6 mm round lever and a 13 bar maximum; repair kit 303.07.0001.01 is listed for it. The VADEN 303.04.0012 axle lift valve replaces ZF-WABCO 463 084 041 0, Krone 515003124 and Schmitz Cargobull 1118420; ZF-WABCO rates the 041 0 at 13 bar with a 24 V coil. Match ports, lever side and control type to the removed valve before ordering from our leveling valve range or axle lift valve catalog; fitting steps are in our leveling valve service guide and lift axle valve repair guide.
Frequently Asked Questions
Why does the lift axle come down when the ignition is switched off?
Usually by design. In ZF-WABCO's ECAS manual, the system lowers a raised lift axle for safety when the trailer is parked with the ignition off, unless set otherwise, and ZF-WABCO's spring-returned valves return to axle-down when the coil loses power. Of its electrically switched valves, only pulse-controlled types such as the 463 084 100 0 keep the axle up.
Can a deflated air spring change how a trailer brakes?
Yes, where a load sensing valve reads air spring pressure. ZF-WABCO's ECAS manual warns that a rapid pressure loss from a badly leaking or damaged spring makes that valve treat a fully loaded trailer as empty, causing under-braking and longer stopping distances. Fix a sagging, leaking spring before the trailer runs loaded.
Why does an air ride trailer wait before it rises off its bump stops?
Brakes come first. Under 49 CFR 393.207 the regulator valve may not let air into the suspension until the brake system holds at least 55 psi, and ZF-WABCO's trailer charging valves feed other consumers only at rated braking pressure. A trailer still down after its brake tanks fill needs its supply line and valves checked.
What does a flashing ECAS lamp on a trailer mean?
A stored fault. In ZF-WABCO's ECAS manual a steady lamp after start-up means the system works but the body is off its driving level, or traction help or the unloading level is active; a flashing lamp means an error. Read the fault memory before replacing parts, and recalibrate after changing a sensor or control unit.
Why does a lift axle go up and down on its own during loading?
On an automatic valve, the lowering and lifting points sit too close. Lowering the axle spreads the load over one more axle, so air spring pressure falls; if it falls below the lifting point, the axle rises again. For its fully automatic 463 084 020 0, ZF-WABCO requires a gap 0.4 bar wider than that pressure change.
