Treadle Valve: Five Signs of Failure and a Simple Shop Test
A treadle valve, or foot brake valve, is the dual-circuit valve under a truck's brake pedal: it meters reservoir air into two separate brake circuits in step with pedal travel. A failing one shows up as late or uneven braking, a hissing exhaust, slow release, a stiff pedal or air loss while braking.
Last updated: November 24, 2026
Key takeaways
- The pedal moves the primary half; primary air drives the secondary half, and the pedal opens it mechanically if primary air is lost.
- Bendix's E-6 and E-10 limit: with an 80 psi application held, no more than a 1 inch soap bubble at the exhaust in 3 seconds.
- Both outputs should rise together; at equal supply pressure Bendix calls up to 5 psi apart normal, or 7.5 psi on high-differential valves.
- Drain one service reservoir at a time: the pedal must still work the brakes on the other circuit.
How does a dual-circuit treadle valve work?
Bendix's service data SD-03-817 for the E-6 and E-10 dual brake valves, attached to a 2014 chassis bulletin filed with NHTSA, shows the inside. The treadle pushes a plunger onto a graduating spring and the primary piston, which seals the primary exhaust and then pushes the primary inlet valve off its seat, sending air to the delivery port.
Some of that air reaches a relay piston, so in normal use the secondary half works like a relay valve, and Bendix notes it responds almost at once because the piston needs so little air. If primary air is lost, pedal force carries through both pistons and opens the secondary inlet mechanically; if secondary air is lost, the primary half works alone. Both halves vent through one exhaust guarded by a diaphragm.
Which wheels each half serves is the vehicle maker's decision, as Ontario's Official Air Brake Handbook notes. Pedal feel comes from the graduating spring: rubber in the E-6, a coil in the E-10, which gives more treadle travel and a less sensitive feel and is generally used on buses. Our map of truck air brake valves shows what sits downstream.
What are the five symptoms of a failing treadle valve?
Brakes that come on late or out of step
Measure before blaming the valve: Bendix expects both delivered pressures to rise equally and in proportion to treadle travel. If the delivery ports track each other but one axle lags, the delay is downstream, in a line, relay valve or ABS modulator. Light stops can also show low front pressure by design: 49 CFR 393.48 lets an automatic front limiting device cut front braking force by up to 50%, but it must stop acting above 85 psi of application pressure.
A hiss at the exhaust port
Both halves share the exhaust, so pedal position is the clue. With the treadle up the inlet valves should be shut, so a leak there is supply air passing an inlet valve or internal seal. With the brakes held the exhaust valves should be shut, so a hiss points to an exhaust seat or delivery-side seal. Drain one service reservoir and listen again to find the half.
Brakes that release slowly or drag
Bendix expects both test gauges to fall to zero promptly when a full application is released. Needles that hang mean the valve is not venting: look for grit at the treadle heel or a binding plunger first. NHTSA campaign 12V-277 shows the worst case: on 2013 model year Blue Bird All American school buses built from December 2011 to March 2012, the treadle valve plunger could fracture, and could also lodge and stop the service brakes releasing.
A stiff, gritty or short pedal
The pedal works against springs and delivered air, not fluid, so a heavy or rough pedal usually has a mechanical cause. Bendix's routine is to clear dirt from the treadle heel, plunger boot and mounting plate, grease the roller, roller pin and hinge pin and renew a cracked boot. Plunger faults are worse: in the Blue Bird case a broken plunger reduced pedal travel and could limit the pressure delivered, and Bendix recall 23E-011 covered 10,425 medium-duty pedal assemblies built from February 2021 to February 2023 whose plunger could disconnect or jam after a foot slipped off a fully applied pedal, leaving the service brakes unable to apply.
Air loss or a low-air warning when braking
Bendix warns that changed braking or a low pressure warning can mean one circuit has failed, and that the vehicle should not run until both work normally. The valve's own fittings count: PACCAR's recall report 19V-606 traces back to a truck that lost its brakes on August 6, 2019 and rear-ended another vehicle; the application lines at its treadle valve were found disconnected, with compression fittings that appeared under-torqued. Kenworth recalled 139 T270 and T370 trucks to check those fittings, as a separated hose cuts application air to the steer and/or rear brakes.
Which fault does each symptom point to?
| Symptom | First check | In the valve | Elsewhere |
|---|---|---|---|
| Late or uneven braking | Gauges on both delivery lines | One output lagging or low | Lines, relay valves, modulators |
| Hiss, pedal up | Soap the exhaust | Inlet valve or seal | Drain one reservoir |
| Hiss, brakes held | Soap test at 80 psi | Exhaust seat or seal | Port fittings |
| Slow release or drag | Gauges after release | Binding plunger, blocked exhaust | Relay valves, chambers |
| Stiff or short pedal | Treadle pivots and boot | Dry pins, broken plunger | Pedal stop, linkage |
| Air loss when braking | Soap the fittings; split test | Loose fitting, internal seal | Hoses, chambers |
How do you test a foot brake valve in the shop?
You need two accurate test gauges, soapy water and wheel chocks. The steps follow Bendix's E-6/E-10 checks and the dual-circuit test in its Air Brake Handbook (BW5057, August 2000, from an NHTSA investigation record).
- Set up. Chock the wheels, charge to governor cut-out and stop the engine. Tee the gauges into both delivery lines close to the valve, ahead of any limiting or relay valve.
- Graduation. Press the treadle to several positions; both needles should climb together, in step with pedal travel.
- Release. After a full application, both gauges should drop to 0 psi promptly.
- Held leak test. Hold an 80 psi application, wedging the pedal with a block of wood as the handbook suggests, and soap the exhaust port and valve body. Bendix allows a 1 inch soap bubble in 3 seconds.
- Released leak test. Let the pedal up and soap the exhaust again; bubbles now mean supply air is passing an inlet valve or seal.
- Split-circuit test. Engine off, drain the front axle reservoir to 0 psi: the rear reservoir must hold, and the pedal must still apply and release the rear brakes and light the stop lamps. Recharge and repeat with the rear reservoir drained.
Step 6 echoes FMVSS 121 (49 CFR 571.121) without replacing it: S5.7.2 has the braking left after a single failure applied, released and modulated with the service brake control, and the new-vehicle road test excludes failure of a common valve, so the shared body still needs inspection.
Should you rebuild the valve or fit a new one?
For an E-6 or E-10 that fails these checks, Bendix offers a new or remanufactured valve or a repair with genuine parts. A rebuild renews every rubber part, checks the seats for nicks or burrs and the springs for cracks or corrosion, and replaces any part with stripped threads or damage. On the E-10 the lock nut holds springs with a combined force of about 50 lb, so contain the pistons before removing it.
Fit a kit when the body, bores and seats are sound; fit a complete valve when the casting is cracked, a seat in the body is damaged or threads are stripped. Match the type number stamped on the housing, then the ports, maximum pressure and predominance. ZF-WABCO's catalogue asks for a functional test of the whole system and a test drive after any repair, so finish with the six checks above.

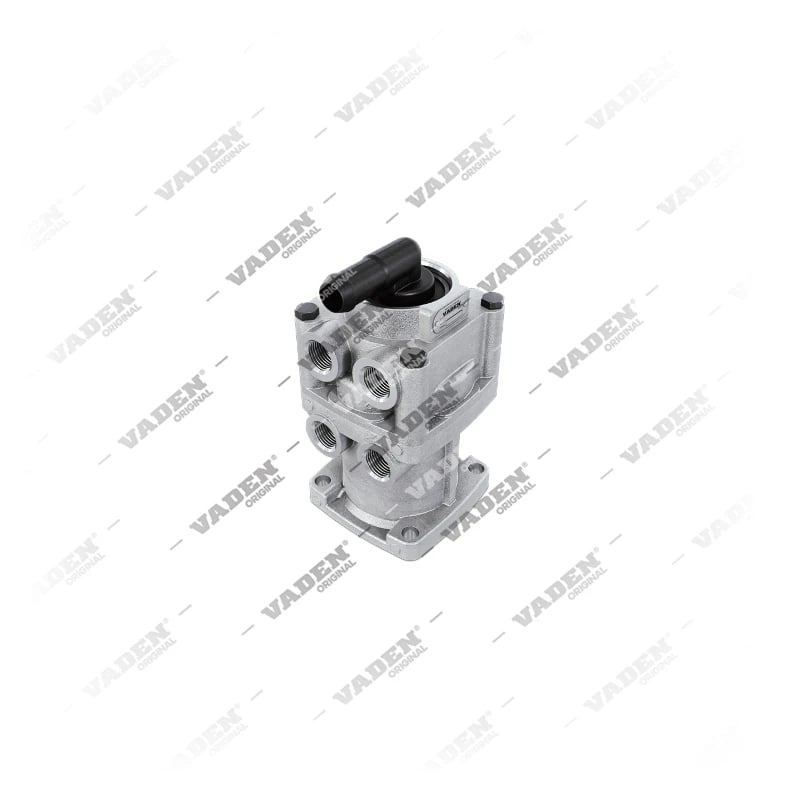

The VADEN 302.01.0001 foot brake valve replaces ZF-WABCO 461 315 008 0, DAF 1518060, Volvo 1589620 and Ford Trucks 1C442 A270A 1A, with M16x1.5 ports 11, 12, 21 and 22, a 10 bar maximum and 0.3 bar predominance, the same 10.0 bar and 0.3 bar that ZF-WABCO's product catalogue lists for the 461 315 008 0. It fits Volvo F10, F12, FL10, FL12, NL10, NL12, B10M and B12 and Ford Trucks Cargo models. The 302.01.0001.06 repair kit cross-references ZF-WABCO 461 315 002 2, DAF 1518773 and MAN 81.52130-6091. See also our foot brake valve range, repair kits for foot brake valves and foot brake valve replacement guide.
Frequently Asked Questions
Why is it called a treadle valve?
Because the driver works it through a treadle, the hinged plate on the valve's mounting plate that presses the plunger. Bendix's handbook lists the E-6, E-8P, E-10P, E-10, E-12 and E-15 as floor-mounted, treadle-operated valves, while the E-7 and E-14 sit on the firewall with a suspended pedal. FMVSS 121 uses the word too.
Does a truck with EBS still have a treadle valve?
Yes, inside the brake signal transmitter. ZF-WABCO's EBS system description gives it two electrical circuits, with two sensors reading pedal travel, and two pneumatic circuits built as a tandem foot brake valve. If the electronics fail, that backup pressure brakes the truck conventionally, with some delay, so the pneumatic half still needs leak checks.
How often should a foot brake valve be inspected?
Bendix's minimum for the E-6 and E-10 is an operating check every 6 months or 1,500 hours of operation, whichever comes first. Every 3 months, 25,000 miles or 900 hours it adds cleaning the treadle area, greasing the roller and pins and checking the plunger boot. Bendix adds that experience should shape the interval.
What do the port and part numbers on a European foot valve mean?
ZF-WABCO's catalogue explains both. In port markings the first digit gives the function, 1 for supply, 2 for delivery and 3 for exhaust, and a second digit counts circuits, so a dual valve takes air in at 11 and 12 and delivers it at 21 and 22. In ten-digit part numbers the last digit gives the status: 0 is a complete device, 2 a repair kit.
What is a full-treadle brake application?
It is a test term from FMVSS 121, the US certification standard for air brakes: an application in which any output circuit of the treadle valve reaches 85 psi within 0.2 seconds, or the treadle reaches maximum travel within 0.2 seconds. It defines stopping tests on new vehicles and is not a workshop pass mark.
